Craft

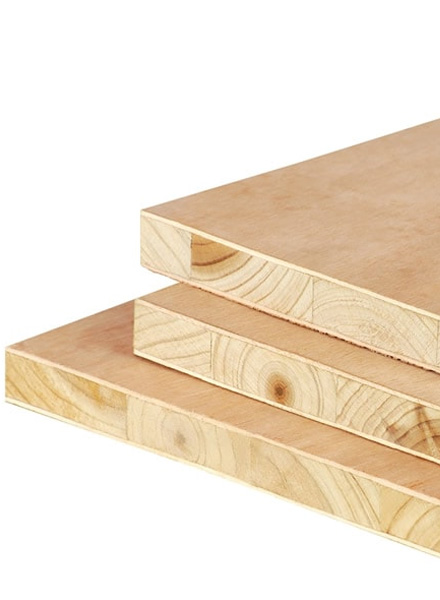

Block Boards

What & How : Our Mr-Grade and BWP-Grade Block Boards are ideal for exterior for horizontal and vertical application. Our block boards are made from preservative-treated, seasoned moderator hardwood and veneer and bonded with melamine-formaldehyde adhesive. For bonding of MR-Grade block board veneers, we use interior-grade melamine-formaldehyude adhesive and for BWP Grade, we use exterior-rade BWP polymer-based adhesive.

Why: Durability, high sustenance, availability of fire-retardant grades and natural decorative veneer-faced block boards.

Where : MR Grade for interior application and BWP grade for exterior application in panelling, furniture, door panels, window panels, cupboard, etc.,

IS: 1659

NAME OF THE LIST
ISI REQUIRED
OBSERVED VALUE
Length DIMENSION
Max 5 mm Min 0 mm		 +2
Width Max 3 mm Min 0 mm +1
Thickness 5%
Variation in Thickness : Not more 0.5 mm - 0.2 mm
DIMENSION CHANGE CAUSED BY HUMIDITY
Max. Change in Length 1 mm 0.32 mm
Max. Change in Thickness 1 mm 0.43 mm
Max. Change in Local Planenness-Less than 1/150 0.14/150
STATIC BENDING STRENGTH MOR
AVG 50N / mm2 IND 42N / mm 2		 AVG 54.86N/mm2 IND 51.22N/mm2
Along the Grain MOE
AVG 5000N/mm2 IND 4200N/mm2		 AVG 5382.18N/mm2 IND 4963.29N/mm2
Edge Straightness 0.20% 0.12%
Squireness 0.20% 0.14%
IS-1659-20047 MR GRADE
Along the Grain		 MOR
AVG 40N/mm2 IND 34N/mm2		 AVG 48.22N/mm2 IND 46.85N/mm2
Along the Grain MOR
AVG 4000N/mm2 IND 3400N/mm2		 AVG 4956.12N/mm2 IND 4213.82N/mm2

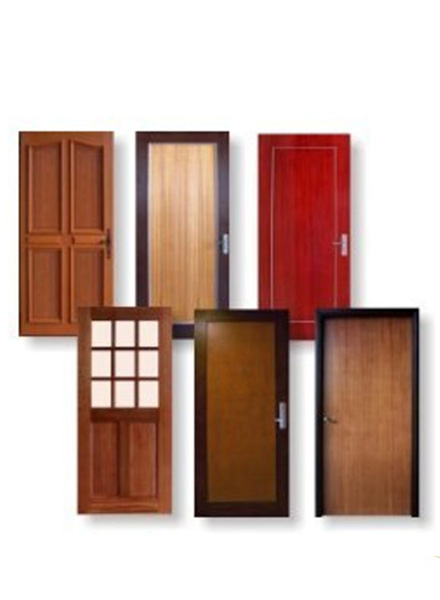

Flush Doors

What & How : Our Flush Doors & Panel have a smooth & flawless surface finish that is ideal for interior & exterior application. Manufactured from high-quality, selected preservative-treated veneers & well-seasoned tropical hard wood, these are treated with anti-microbiol organism b yvacuumim pregnation to prevent decay. For frames, we use seasoned, joint less, preservative-treated hard wood with lock facility. For panel doors, we use particle boards, MDF & Plywood. For surfaces, we use natural wood veneers or decorative veneers to suit requirements.

Why : Dimensionally stable, rigid, durable, decay proof, can be painted or polished, availability of customized doors, availability of fire-retardant variants.

Where : Indoor & Outdoor application in domestic & Commercial establishments.

IS: 2202-1

NAME OF THE LIST
ISI REQUIRED
OBSERVED VALUE
Dimension & Squareness Length : +5mm, -5mm
Width : +5mm, -5mm
Thickness : +1mm
Squareness : 1mm at a length of 500 mm		 Length : +3mm, -5mm
Width : +2mm, -5mm
Thickness : +0.6mm
Squareness : < 1mm at a length of 500mm
General Flatness
Local Planeness
Impact Indention		 <6mm
<0.5mm
<0.2mm		 <4mm
<0.3mm
<0.15mm
Edge Loading Tests Residual deflection <0.5mm Residual deflection <0.25mm
Knif/glue Adhesion-Test
Screw with drawl Resistance
Slamming Tests
Buckling Tests		 Pass Stand
>1000N
Pass
Pass		 Excellent
>1500N
Excellent
Excellent

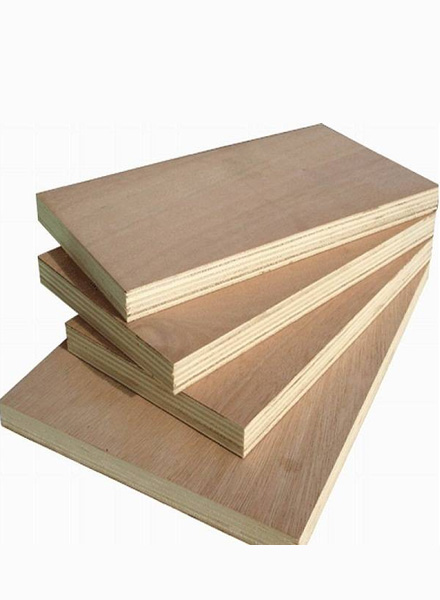

MR GRADE PLYWOOD

What & How : Our High-Quality and High-Resistance MR-Grade General Purpose Plywood is ideal for Superior-Quality Exterior and Interior application in hot and humid location. Made from moderatory hardwood veneers and thermosetting bonded with MR-type resin, our veneers are preservative treated by the soaking method using anti-mycological substances to prevent insect infestation.

Why : Ability to withstand boiling water, cold water, climatic variations and borer and termite attacks.

Where : Exterior furniture and fixtures, kitchen and bathroom woodwork, automotive bodies, railway coaches, partitions, door panels inserts.

IS: 303

NAME OF THE LIST
ISI REQUIRED
OBSERVED VALUE
Length
Width
Thickness
Variation in Thickness : Not more		 DIMENSION
Max 6 mm Min 0 mm
Max 3 mm Min 0 mm
5%		 2142 mm
1221 mm
9.09, 8.92, 8.87
8.97, 8.84, 8.92mm
0.07%
0.09%
Squareness
Strightness		 0.20%
0.20%
ADHESION OF PLY
STATIC BENDING STRENGTH
Along the Grain
Across the Grain		 MIN-PASS STDM
OR
AVG 30N/mm2 IND 27N/mm2
AVG 15N/mm2 IND 13N/mm2
MOE		 EXCELLENT

AVG 35.89N/mm2 IND 34.94N/mm2
AVG 26.18N/mm2 IND 22.45N/mm2
Along the Grain
Across the Grain		 AVG 4000N/mm2 IND 3600N/mm2
AVG 2000N/mm2 IND 1800N/mm2		 AVG 4782N/mm2 IND 4178N/mm2
AVG 2648N/mm2 IND 2217N/mm2

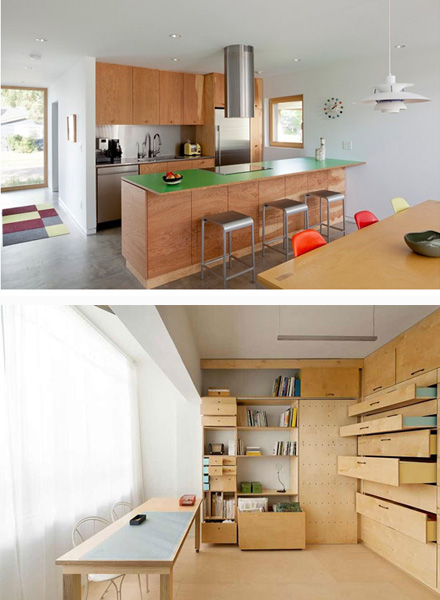

BWR GRADE PLYWOOD

What & How : Our versatile, ready-to-use smart BWR-grade Plywood is the preferred choice for woodwork and is ideal for use in hot and humid climatic condition. The veneers are made from moderator rdwood & bonded with exterior-grade polymer based synthetic adhesive controlled temperature & pressure

Why : Ability to withstand boiling water, cold water, climatic variations, borer & termite attacks, moisture resistance.

Where : All kinds of interior and exterior furnishing application, especially for use in furniture, cupboards, wardrobes ceilings, paneling & special packaging.

IS: 303

NAME OF THE LIST
ISI REQUIRED
OBSERVED VALUE
Length
Width
Thickness
Variation in Thickness : Not more		 DIMENSION
Max 6 mm Min 0 mm
Max 3 mm Min 0 mm
5%		 2442 mm
1221 mm
12.66, 12.12, 12.00
11.85, 12.19, 11.76mm
0.09%
0.13%
Squareness
Strightness		 0.20%
0.20%
ADHESION OF PLY
STATIC BENDING STRENGTH
Along the Grain
Across the Grain		 MIN-PASS STDM
AVG 40N/mm2 IND 36N/mm2
AVG 20N/mm2 IND 18N/mm2
MOE		 EXCELLENT
AVG 48.28N/mm2 IND 41.56N/mm2
AVG 26.18N/mm2 IND 24.96N/mm2
Along the Grain
Across the Grain		 AVG 5000N/mm2 IND 4500N/mm2
AVG 2500N/mm2 IND 2200N/mm2		 AVG 5476N/mm2 IND 4892N/mm2
AVG 2816N/mm2 IND 2642N/mm2

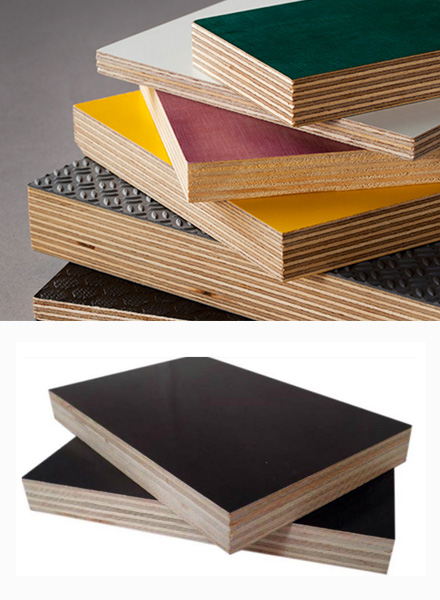

FILM FACED PLYWOOD

What & How : Our Film-faced Shuttering Plywood is ideal for optimized & economical shuttering application. It is manufactured using preservative treated tropical hardwood & exterior grades Synthetic resin. We use BWP-grade, Polymer-based synthetic adhesive & 360-gsm synthetic polymer films on the surface for a mirror finish making plastering unnecessary.

Why : Dimensionally stable, non-water absorbent surface, high load-bearing strength.

Where : All horizontal & vertical shuttering purpose.

IS: 4990 (2011)

NAME OF THE LIST
ISI REQUIRED
OBSERVED VALUE
Length
Width
Thickness
Squareness
Strightness
ADHESION OF PLY		 DIMENSION
Max 6mm Min 0 mm
Max 3mm Min 0 mm
5%
0.20%
0.20%
MIN-PASS STD		 2442 mm
1221 mm
Variation 5%
0.12%
0.13%
EXCELLENT
Dry State Wet State AVG-1350N Min-1000N
AVG-1000N Min-800N
TENSIL STRENGHT
Parallel to Grain
Perpendicular to Grain
Sum of Both
32.5 N
22.5 N
60 N
40.36 N
32.29 N
72.65 N
STATIC BENDING STRENGTH
Along the Grain
Across the Grain
MOR
AVG 60N/mm2 IND 45N/mm2
AVG 30N/mm2 IND 27N/mm2
AVG 53.66N/mm2 IND 50.57N/mm2
AVG 44.21N/mm2 IND 31.55N/mm2
MOE
AVG 7500N/mm2 IND 6700N/mm2
AVG 4000N/mm2 IND 3600N/mm2
AVG 7698N/mm2 IND 7512N/mm2
AVG 4432N/mm2 IND 3910N/mm2

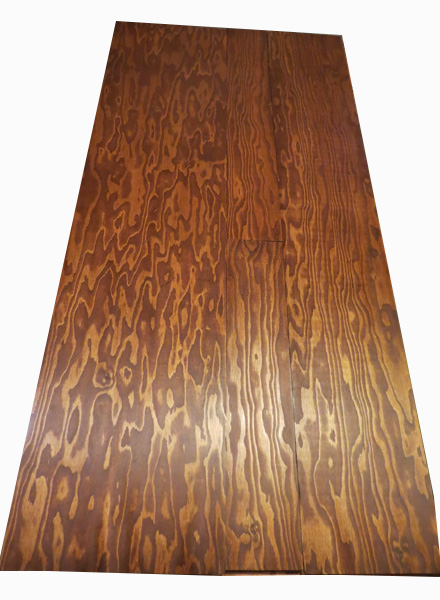

MARINE PLYWOOD

What & How : Our Marine Plywood is best suited for all kinds of marine application. Our product is made from tropical hardwood veneer, it is preservative-treated under vacuum pressure impregnation with anti-mycological substance to prevent insect infestation & bonded with thermosetting BWP-hype exterior-grade resin. We manufacture marine plywood for container floorings that comply with AQS & Lloyds standards.

Why : Dimensionally stable, high structural properties, availability of fire-retardant grades.

Where : Ships, boats, crafts, bridges, oil high platforms, container flooring & extreme application like floor & cooling towers.

IS: 710

NAME OF THE LIST
ISI REQUIRED
OBSERVED VALUE
Length
Width
Thickness		 DIMENSION
Max 6 mm Min 0 mm
Max 3 mm Min 0 mm
5%
 2442 mm
1221 mm
12.66, 12.12, 12.00
11.85, 12.19, 11.76mm
Squareness
Strightness		 0.20%
0.20%		 0.09%
0.13%
ADHESION OF PLY
STATIC BENDING STRENGTH		 MIN-PASS STD EXCELLENT
Along the Grain
Across the Grain		 MOR
AVG 40N/mm2 IND 36N/mm2
AVG 20N/mm2 IND 18N/mm2		 AVG 48.28N/mm2 IND 41.56N/mm2
AVG 26.18N/mm2 IND 24.96N/mm2
Along the Grain
Across the Grain		 MOR
AVG 5000N/mm2 IND 4500N/mm2
AVG 2500N/mm2 IND 2200N/mm2		 AVG 5476N/mm2 IND 4892N/mm2
AVG 2816N/mm2 IND 2642N/mm2

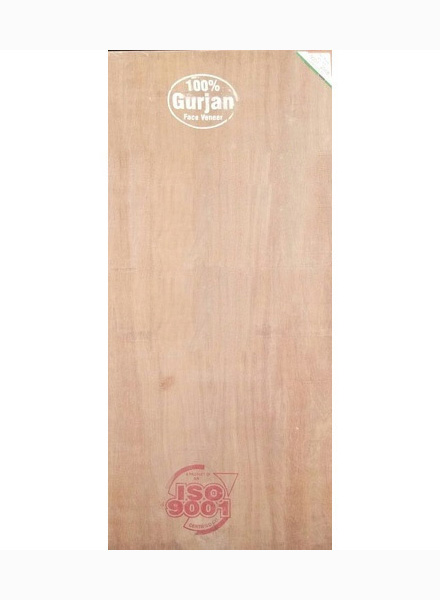

100% GURJAN PLYWOOD

What & How : Our Decorative Plywood renders an exclusive royal touch & is perfect for the interior & exterior application. It is manufactured using moderatory hardwood veneers, preservative treated by the soaking method & bonded with interior or exterior grades of polymer-based adhesive depending on customer specification. Natural wood-face veneers are bonded with melamine-formaldehyde synthetic resin. You can choose from a wide array of natural veneers.

Why : High strength, preservative treated, high durability, availability of fire-retardant grades on demand.

Where : All types of interior/exterior furniture & paneling in vertical or horizontal applications.

IS: 4990:1993

NAME OF THE LIST
ISI REQUIRED
OBSERVED VALUE
Edge Strightness Not More than 0.2% 0.12%
Squarness Note More than 0.2% 0.11% Residual deflection <0.25mm
Moisture Content 5% to 15% 9%
Water Resistant No Delamination & Buster Formation Pass
